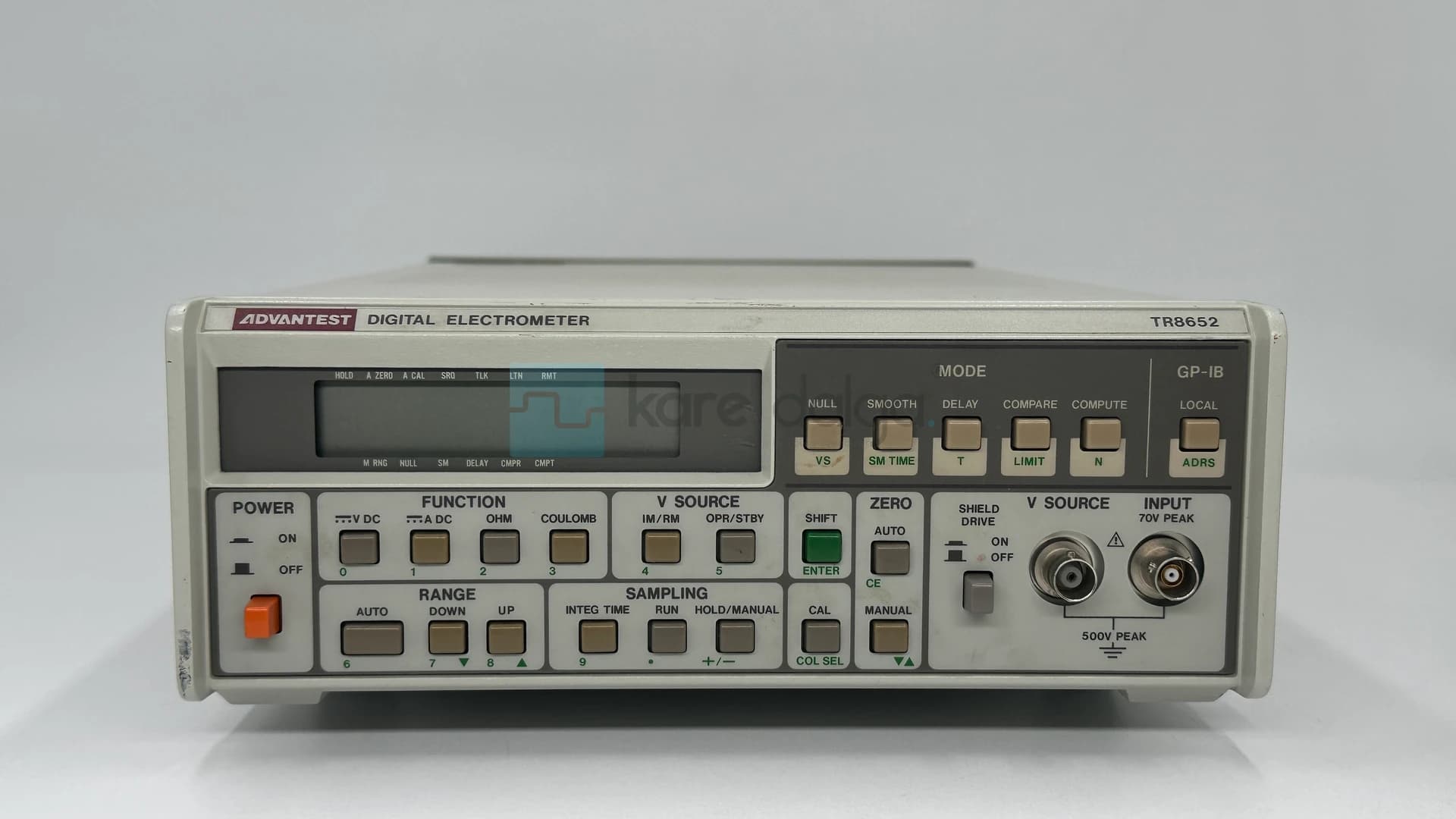

The product is used and works flawlessly. The product images show the actual item. We offer sales, purchasing, rental, and technical services for test and measurement equipment.
Measurement Resolution: 6½ digits.
DC Voltage Measurement Range: 1 µV – 200 V DC.
DC Current Measurement Range: 0.1 fA – 20 mA DC.
Resistance Measurement Range: 1 Ω – 2 × 10¹⁴ Ω (200 TΩ).
Charge Measurement Range: 0.1 fC – 2 C.
Voltage Source: ±1000 V programmable DC output.
Current Sensitivity: Low current measurement at the femtoampere (10⁻¹⁵ A) level.
Resistance Sensitivity: High-impedance measurement at the teraohm level.
Input Impedance: 10¹⁴ Ω or higher.
Measurement Functions: DC voltage, DC current, resistance, charge (Coulomb), programmable voltage source.
Measurement Modes: Auto Zero, Null, Compare, Compute, Smooth, Delay, and Manual/Hold measurement modes.
Sampling: Manual and continuous sampling, with adjustable integration time.
Protection Features: 70 V Peak measurement input, 500 V Peak voltage source isolation, and Shield Drive protected input design.
Communication Interface: IEEE-488 GPIB (GP-IB) remote control support.
Indicator: Large LCD display and status indicators.
Supply Voltage: 100–240 VAC, 50/60 Hz.
Dimensions: Approximately 132 × 320 × 380 mm.
Weight: Approximately 6 kg.
Key Technical Advantages: Ultra-low current measurement at the femtoampere level, high resistance measurement up to 200 TΩ, built-in ±1000 V voltage source, high insulated input design, and GPIB-enabled automation infrastructure.
SKU: MX-112
