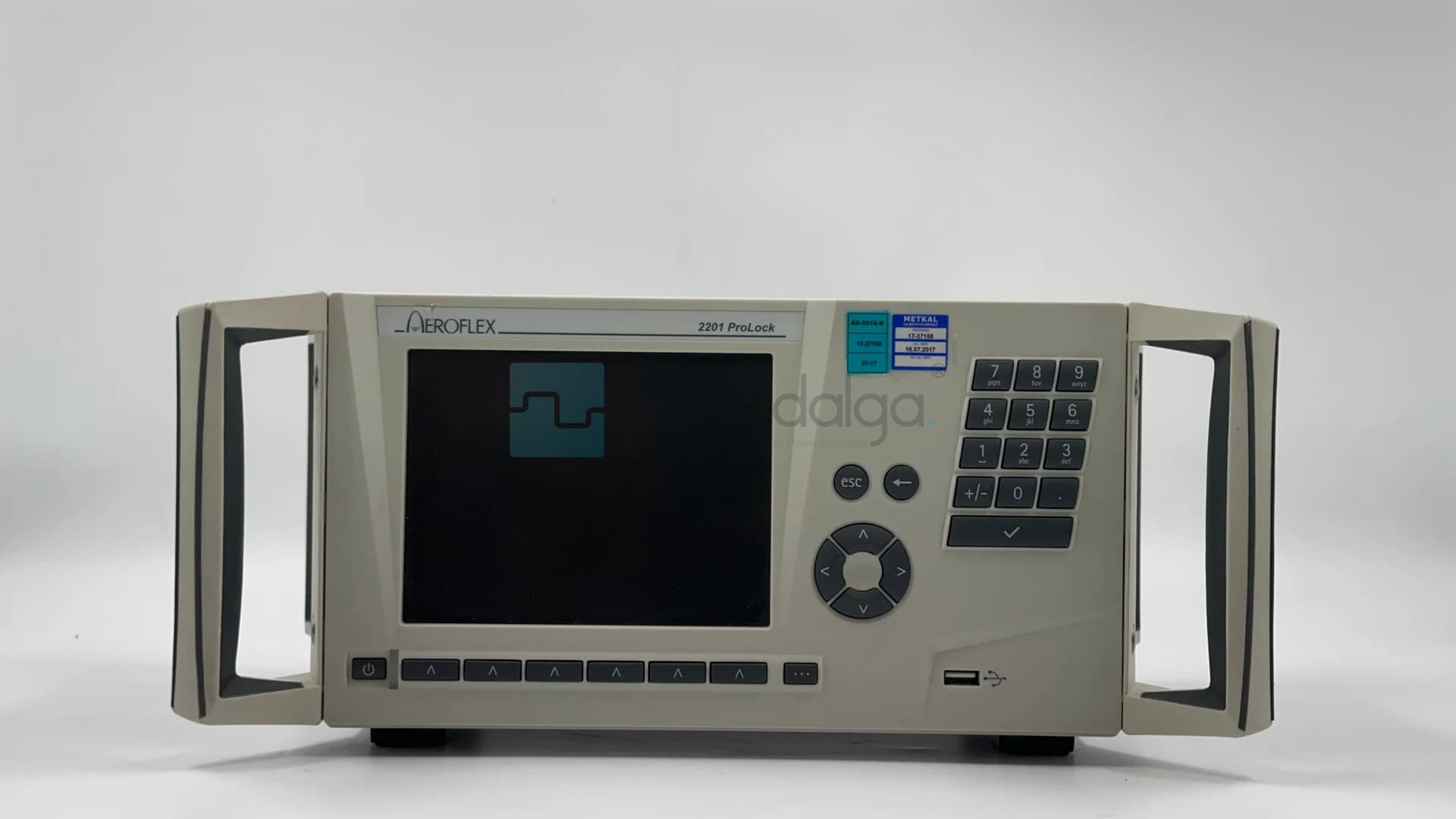

Aeroflex 2201 ProLock 100 kHz 2700 MHz Mobile Communication Test Device
Device Type: Mobile phone (RF) service and filter test device
Supported Network Technologies: GSM, GPRS, EDGE, WCDMA, HSDPA and TD-SCDMA standards
Frequency Step (Sensitivity): 100 kHz
RF Input Level Range: -85 dBm to +35 dBm (typical -75 to +35 dBm)
RF Output Level Range: -110 dBm to -40 dBm
Basic RF Impedance: Standard 50 Ohm (N-type female connector)
Internal Time Base: 10 MHz reference frequency (annual 1 ppm aging rate)
GSM Measurement Capabilities: Output power, RMS/peak phase error, frequency error, burst length and BER/BLER tests
WCDMA Measurement Capabilities: Maximum/minimum output power, open and closed loop power controls
Interfaces and Connections: Ability to operate without a computer, RS-232, multiple USB ports and LAN port
Network Power Supply: General power supply compatibility from 100 V to 250 V AC (50 - 60 Hz)
The product is used and works flawlessly. The product images show the actual item. We offer sales, purchasing, rental, and technical services for test and measurement equipment.
