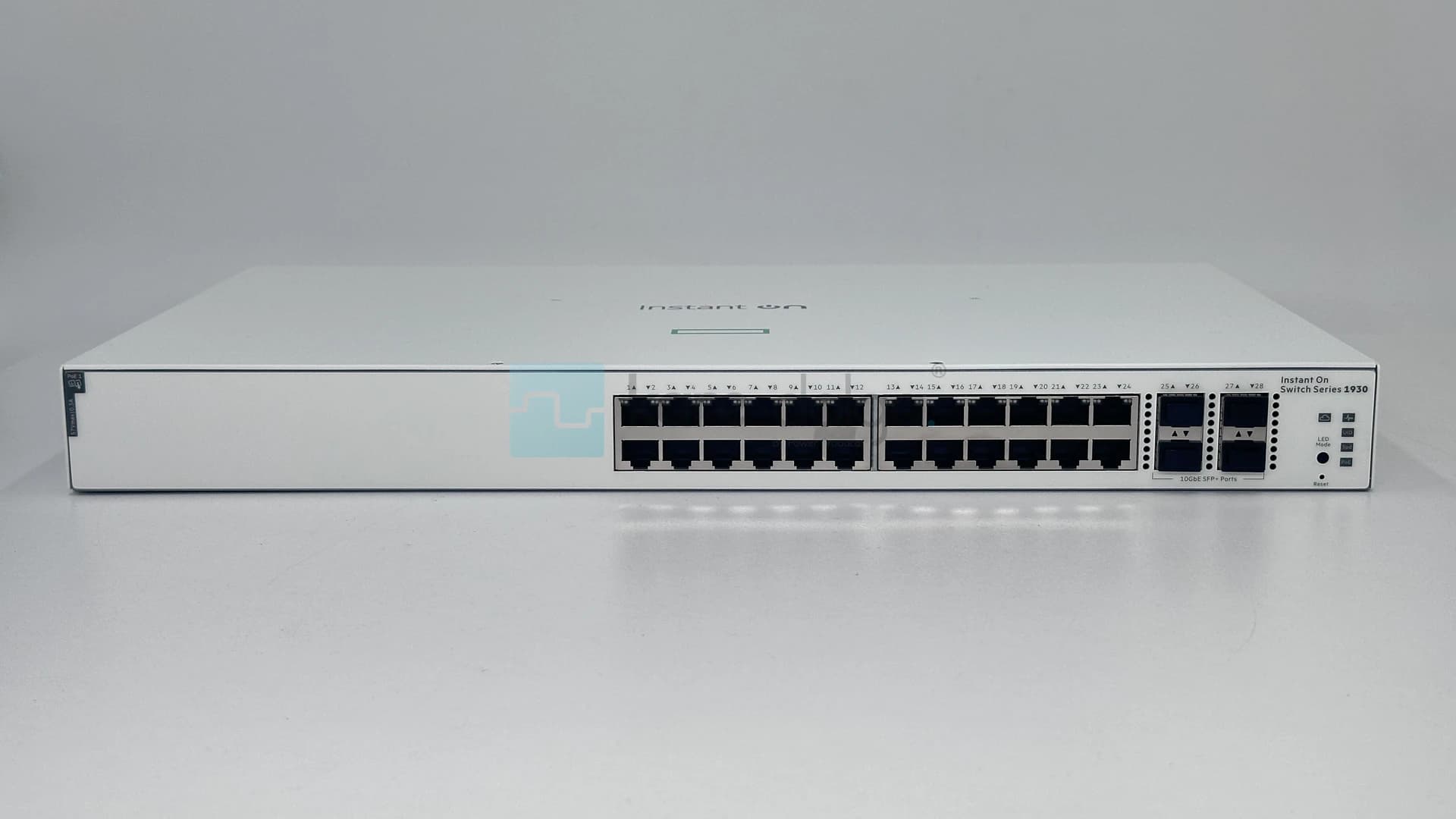

Aruba Instant On 1930 Jl684a 24 Port Gigabit Poe+ 4 Port 10gbe Sfp+ Switch

Aruba Instant On 1930 JL684A 24-Port Gigabit PoE+ 4-Port 10GbE SFP+ Managed Switch Technical Specifications

• Ethernet Ports: 24 × RJ45 10/100/1000 Mbps Gigabit Ethernet
• PoE Support: 24 × Class 4 PoE/PoE+ ports, IEEE 802.3af/IEEE 802.3at
• PoE Power Budget: 370 W
• PoE Power per Port: Up to 30 W
• Uplink Ports: 4 × 1/10 GbE SFP/SFP+
• Total Network Ports: 28 ports (24 × RJ45 + 4 × SFP/SFP+)
• Switching Capacity: 128 Gbps
• Transmission Performance: 95.23 Mpps
• MAC Address Table: 16,000 addresses
• Processor: ARM Cortex-A9, 800 MHz
• Memory: 512 MB SDRAM, 256 MB Flash
• Packet Buffer Memory: 1.5 MB
• Management: HPE Networking Instant On Cloud, web interface, and SNMP
• VLAN Support: IEEE 802.1Q VLAN
• QoS: IEEE 802.1p/DSCP, advanced traffic prioritization
• Routing: Layer 2+ features and static routing support
• Power Supply: 100–127 / 200–240 VAC, 50/60 Hz
• power supply: Built-in AC power supply
• Mounting: 19" rack-type, 1U
• Dimensions: 44.25 × 26.47 × 4.39 cm
• Weight: Approximately 3.67 kg
• Use: IP cameras, PoE access points, VoIP systems, enterprise networks, and high-speed 10GbE uplink applications
