USEDRENTABLE
Contact us for pricing
Click "Request a Quote" for corporate offers and volume-based custom pricing.

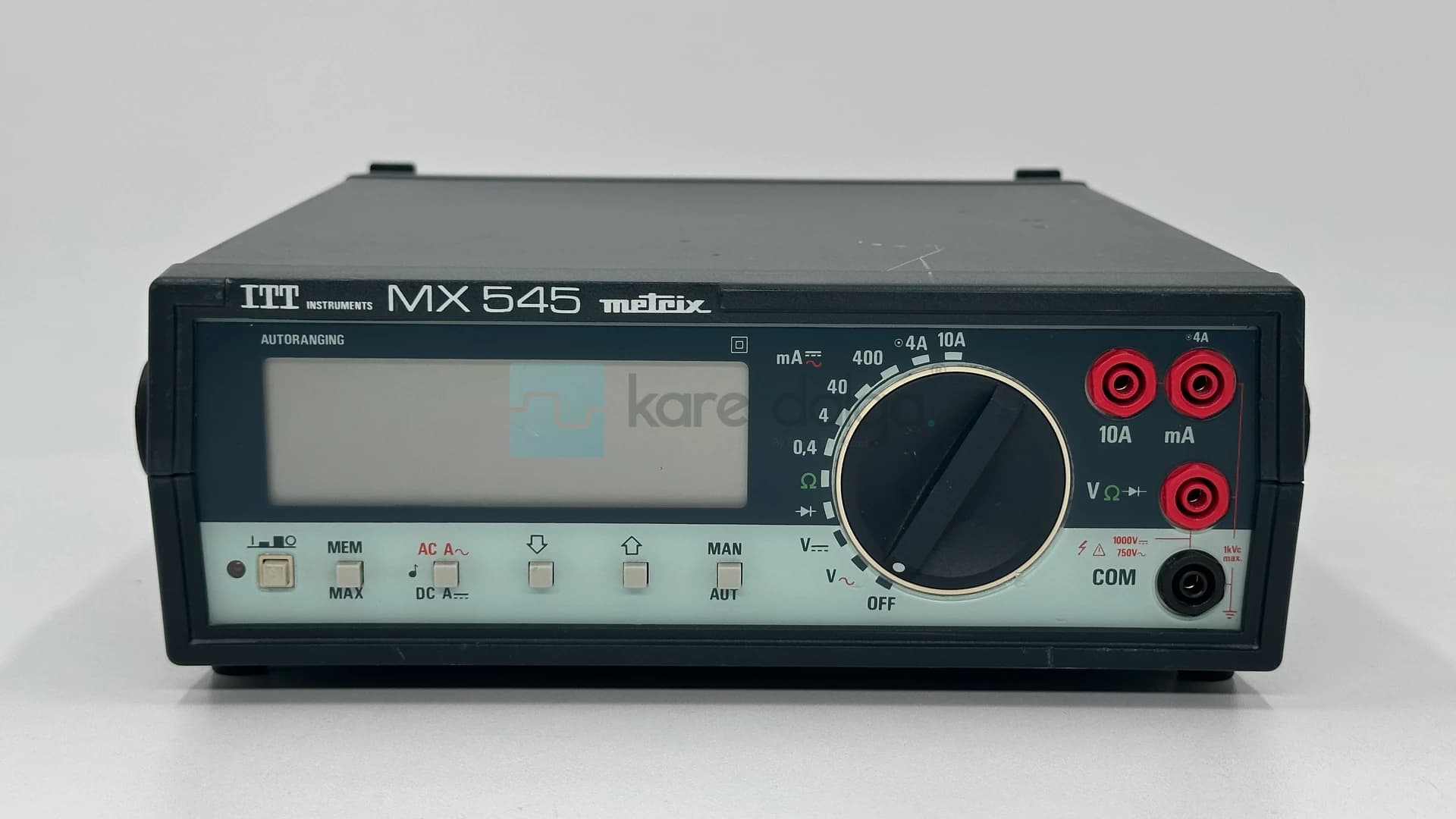

The product is used and works flawlessly. The product images show the actual item. We offer sales, purchasing, rental, and technical services for test and measurement equipment.
Measurement Resolution: 4½ digits (19,999 counts).
DC Voltage Measurement Range: 400 mV – 1000 V.
AC Voltage Measurement Range: 400 mV – 750 V RMS.
DC Current Measurement Range: 400 µA – 10 A.
AC Current Measurement Range: 400 µA – 10 A RMS.
Resistance Measurement Range: 400 Ω – 40 MΩ.
Diode Test: Built-in semiconductor diode test function.
Continuity Test: Inbuilt voice continuity test.
Level Selection: Automatic (Autoranging) and manual level selection.
Accuracy: Typical ±0.05% reading accuracy in DC voltage measurement.
Input Impedance: 10 MΩ (in DC voltage measurement).
Maximum Input Voltage: 1000 V DC / 750 V AC RMS.
Maximum Input Current: 10 A and 4 A (safety-protected inputs).
Security Category: CAT I 1000 V.
Indicator: Wide LCD digital display.
Measurement Functions: DCV, ACV, DCA, ACA, resistance (Ω), diode, and continuity testing.
Supply Voltage: 100–240 VAC, 50/60 Hz.
Dimensions: Approximately 105 × 240 × 330 mm.
Weight: Approximately 4 kg.
Key Technical Advantages: Automatic range selection (Autoranging), high input protection, 10 A current measurement capability, and a robust desktop design suitable for laboratory use.
SKU: MX-112
