USEDRENTABLE
Contact us for pricing
Click "Request a Quote" for corporate offers and volume-based custom pricing.
The product is used and works flawlessly. The product images show the actual item. We offer sales, purchasing, rental, and technical services for test and measurement equipment.

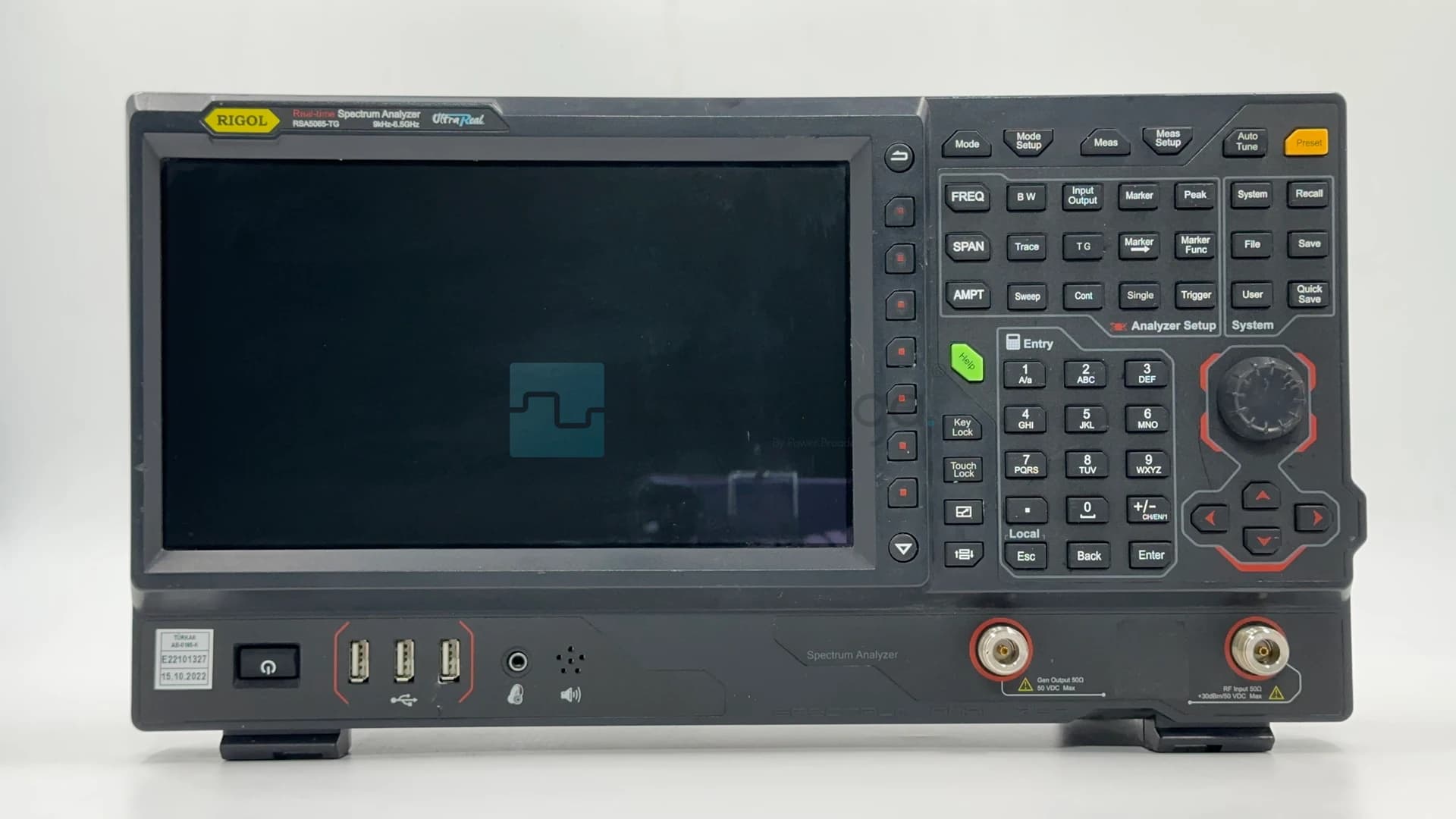

Rigol RSA5065-TG 6.5 GHz Real-Time spectrum analyzer Technical Specifications
• Operating Frequency Limit: Wideband real-time spectrum analysis from 9 kHz to 6.5 GHz with UltraReal technology.
• Connection Type: N-type female RF input (50 Ohm) positioned on the front panel, followed by a Transmitter Generator (TG) output, three USB slots, and a headphone jack.
• Real-Time Analysis Bandwidth: Standard 25 MHz (optionally upgradable to 40 MHz) real-time bandwidth that captures signals without oversampling.
• Displayed Average Noise Level (dANL): With the preamplifier active for the sensitive detection of small signals <-165 dBm low base noise level.
• Tracking Generator: Integrated internal 9 kHz - 6.5 GHz tracking generator hardware for filter, antenna and cable testing.
• Screen and Interface: 10.1-inch multi-touch high-resolution LCD display panel with touch control support.
• Point-of-Interest (POI) Determination Time: Ultra-short minimum signal detection time, such as 7.45 µs, to guarantee 100% capture of transient and instantaneous signals
